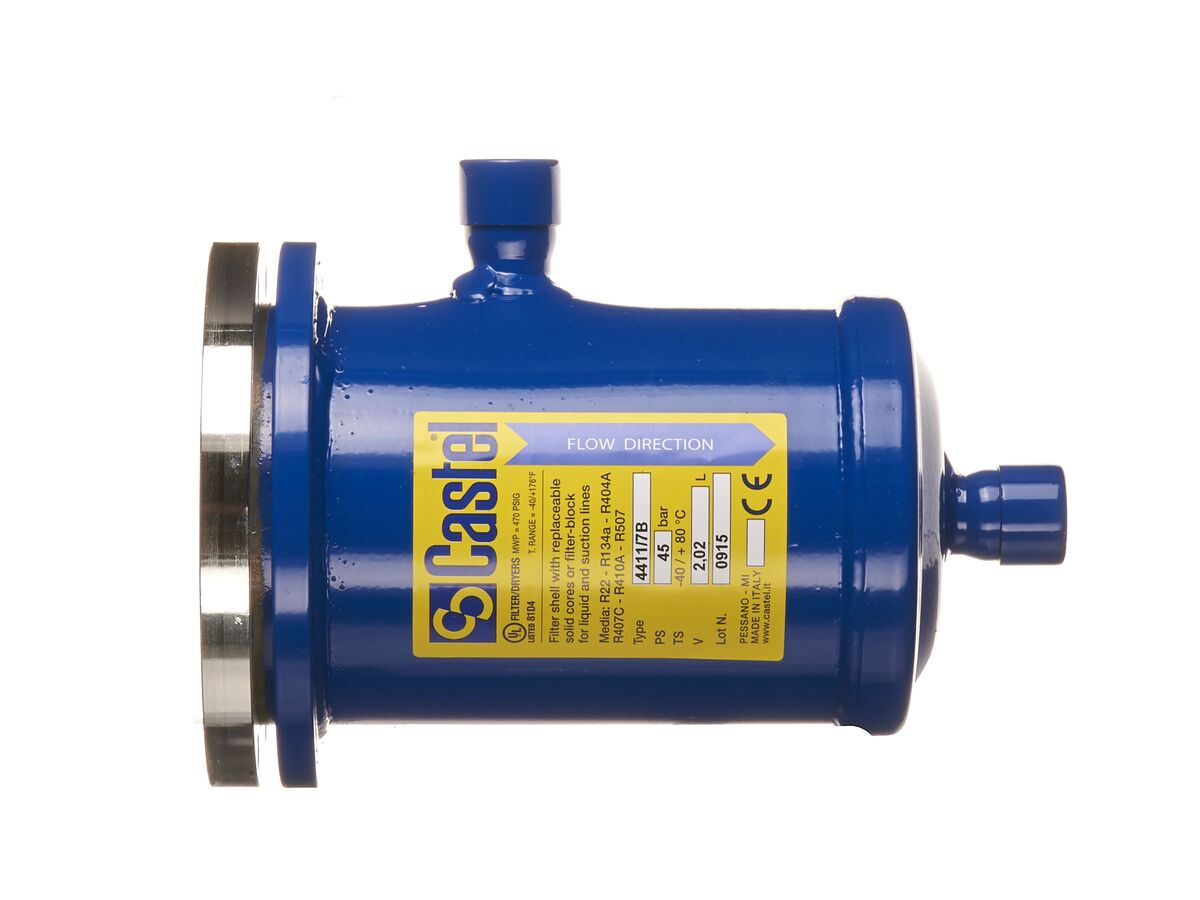

Castel Drier Shell 1 Core 7/8" Solder 45 bar 4411/7B
Product code:
8002818
View Product Specifications
Castel
high-strength screws
Product Specifications
Warranty Information
Documents and Downloads
Back
Size and Dimensions
Connection Size (Solder)
7/8"
Features
aluminium cover
made from copper pipe EN 12735 1 Cu-DHP.
Machined from a steel bar EN 10025 S355JR. F suffix after connection code
General Information
Part Number
4411/7B
Technical Information
Refrigerant Type
R22, R134a, R404A, R407C, R410A, R507, R1234ZE, R448A, R449A, R450A, R452A, R513A
Desiccant Volume (cubic inches)
48
No & Size of Blocks Required
1 x 48
Pressure Information
Maximum Working Pressure
4500kPa
Temperature Information
Temperature Range
-40/+80DegC
Refrigerant Capacities
R134a @ 7kPa Liquid Flow Capacity kW
148
R22 @ 7kPa Liquid Flow Capacity kW
158
R404A R507 @ 7kPa Liquid Flow Capacity kW
103
