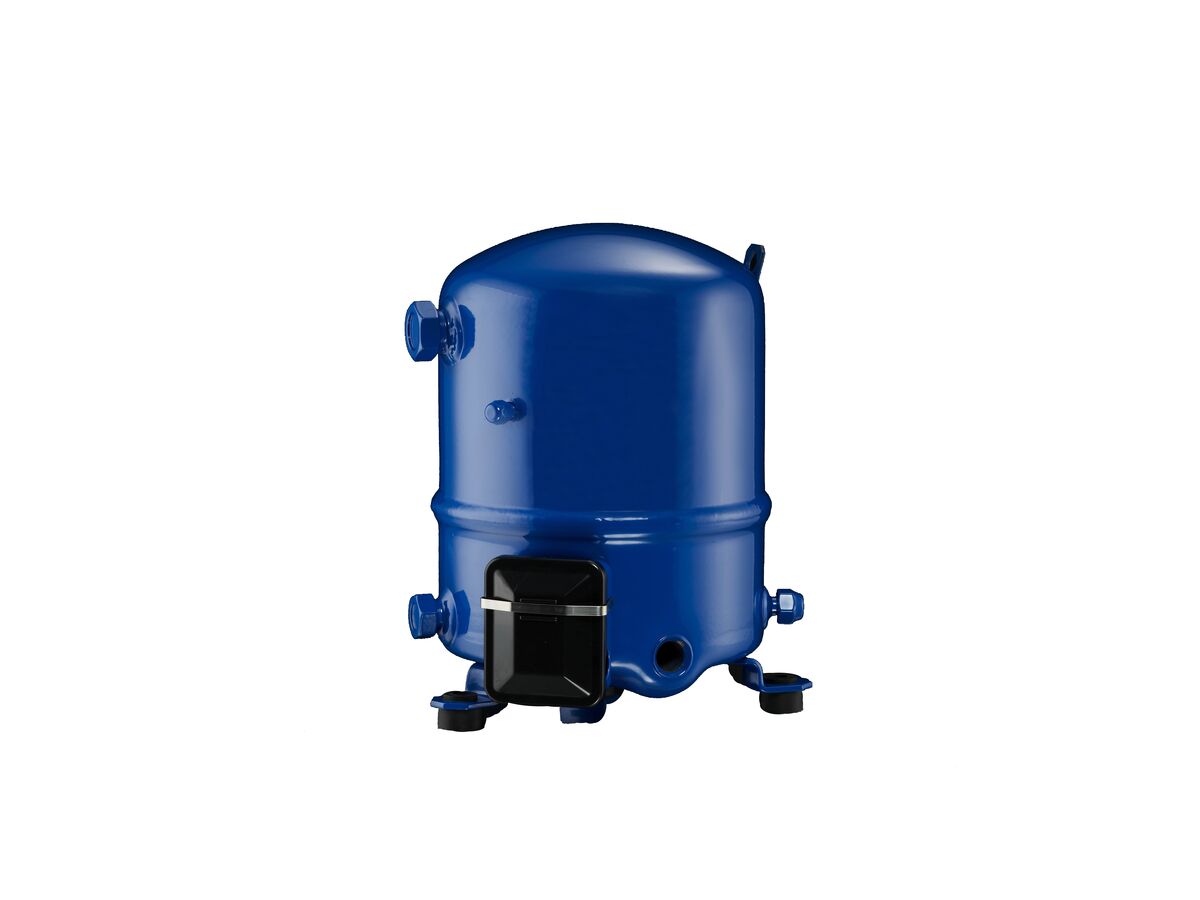

Maneurop NTZ048A4LR1B Compressor 3PH

Product code: 3501046

Danfoss Maneurop

NTZ are designed for low evaporating temperature applications. Available in a large variety of single and tandem models for
refrigerants R404A, R452A the compressors fit in lots of different applications.

Size and Dimensions

Height	333 mm
Connection Size (Liquid)	1/2"
Connection Size (Suction)	5/8"
Diameter	224 mm
Weight (Net)	21 kg
Weight (Gross)	22.75 kg

Inclusions and Exclusions

Inclusions	Suction and discharge solder sleeves, rotolock nuts and gaskets
	Mounting kit with grommets, bolts, nuts, sleeves and washers

Features

	Operation under extreme conditions
	Versatile
	No need for air circulation around the compressor
	Long lifetime expectancy and reliability

General Information

Model Number	NTZ048A4LR1B
Compressor Series	NTZ
Part Number	120F0228

Technical Information

Refrigerant Type	R404A, R452A, R454C, R455A
Connection Type	Rotolock
Number of Cylinders	1
Oil Charge	950 ml
Suction Connection Rotalock Size	1 1/4"
Suction Connection Suggested Rotalock Valve	1 1/4"R x 5/8"
Discharge Connection Rotalock Size	1"
Discharge Connection Suggested Rotalock Valve	1" R x 1/2"

Power Information

Compressor Phase	3ph
Compressor Electrical Supply	380-415V
