SolerPalau Fan 630mm 1Ph HRB/6-630/30BPN
Product code:
2711032
View Product Specifications
Solerpalau
Fan Motor Assembly
Product Specifications
Documents and Downloads
Back

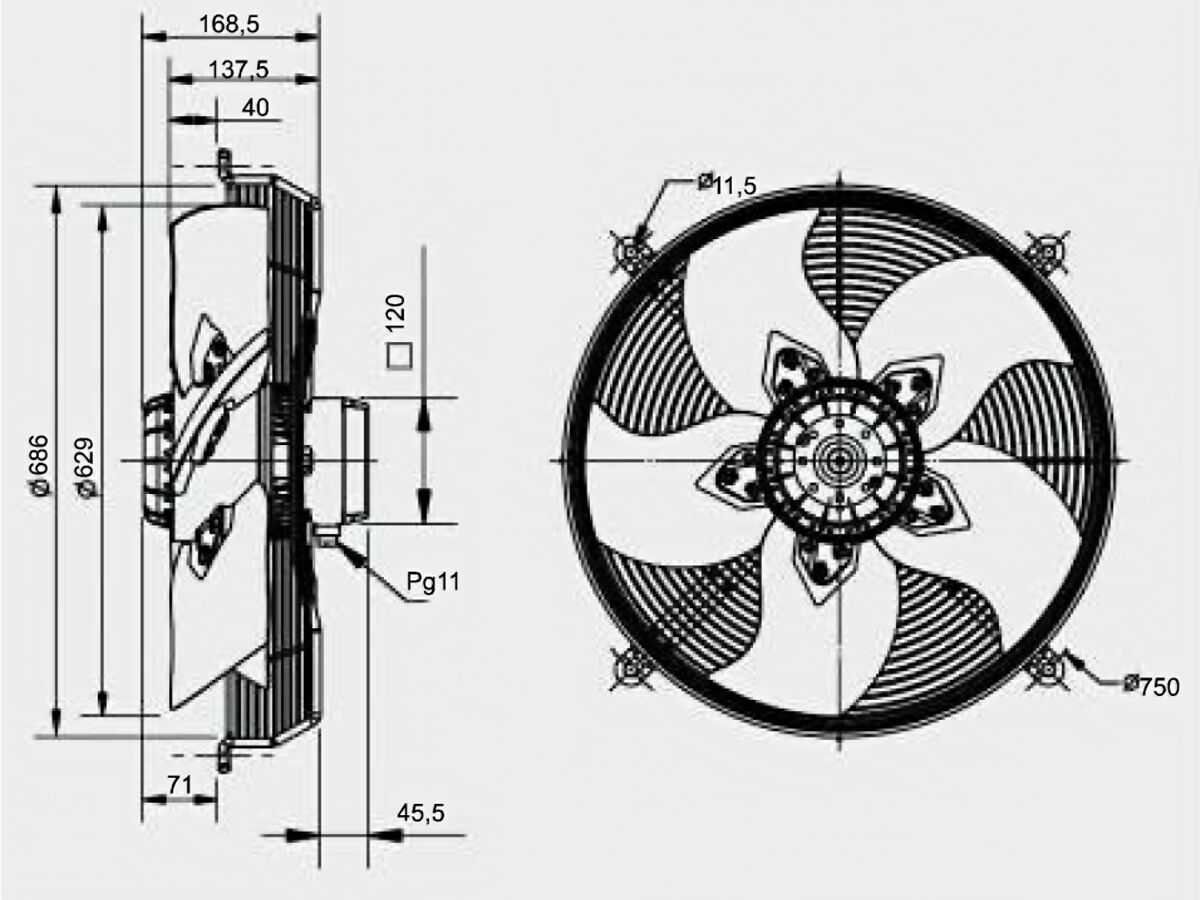

Size and Dimensions
Diameter
630 mm
Weight
18 kg
General Information
Part Number
HRB/6-630/35BPN
Product Range
Rotorex Axial Fan
Technical Information
Air Flow (ltr/sec)
3333 ltr/sec
Mounting Hole Centres
750
Phase
1
Current Type
AC
RPM
820 RPM
Speed
850 RPM
Power Information
Amps
2.5 A
Power Output
700 W
Power Supply
240V
Watts
700 W
Specification, Manuals & Installation
Specification Sheet - SolerPalau Fan 630mm 1Ph HRB/6-630/30BPN
