SolerPalau Plate Mount Fan

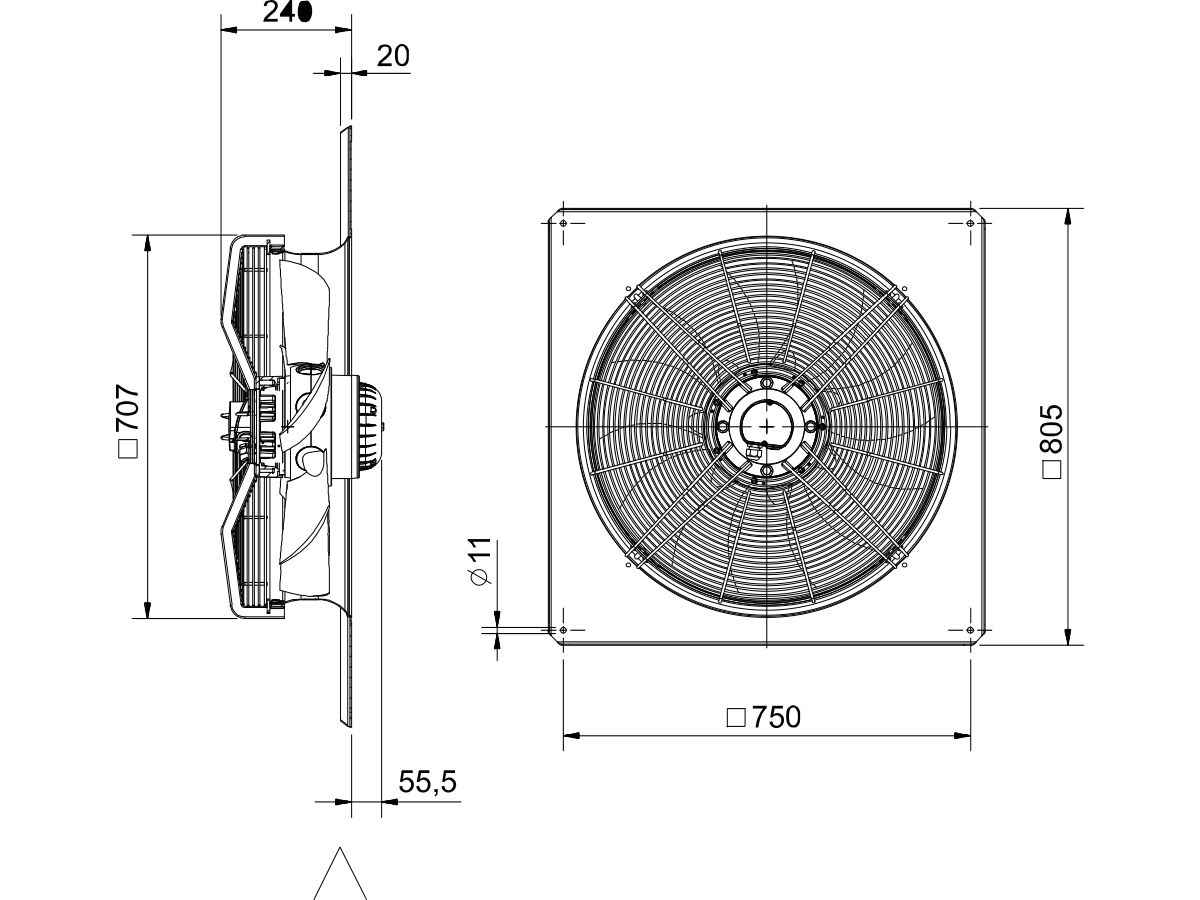

Technical Drawing - SolerPalau Fan 630mm 3Ph HRST/4-630/33BZ

SolerPalau Fan 630mm 3Ph HRST/4-630/33BZ

Product code: 2711041

View Product Specifications

Solerpalau

Fan Motor Assembly

SolerPalau Plate Mount Fan

SolerPalau Plate Mount Fan

Size and Dimensions

Diameter	630 mm
Weight	45 kg

General Information

Part Number	HRST/4-630/33BZ
Product Range	Rotorex Axial Fan

Technical Information

Air Flow (ltr/sec)	5500 ltr/sec
Mounting Hole Centres	750
Phase	3
Current Type	AC
RPM	1320 RPM
Speed	910 RPM

Power Information

Amps	4.1 A
Power Output	2500 W
Power Supply	415V
Watts	2500 W

Specification, Manuals & Installation

Specification Sheet - SolerPalau Fan 630mm 3Ph HRST/4-630/33BZ

Specification Sheet - SolerPalau Fan 630mm 3Ph HRST/4-630/33BZ View
